Photographs of the GREAT detector

These photographs have been taken during the setup of GREAT for the July 2002 comissioning run.

To see a picture in greater detail please click on the image.

	PE & DEA hard at work soldering. High Resolution		The GREAT Assembly prior to being cabled up. High Resolution		The bare GREAT Assembly prior to being cabled up. High Resolution

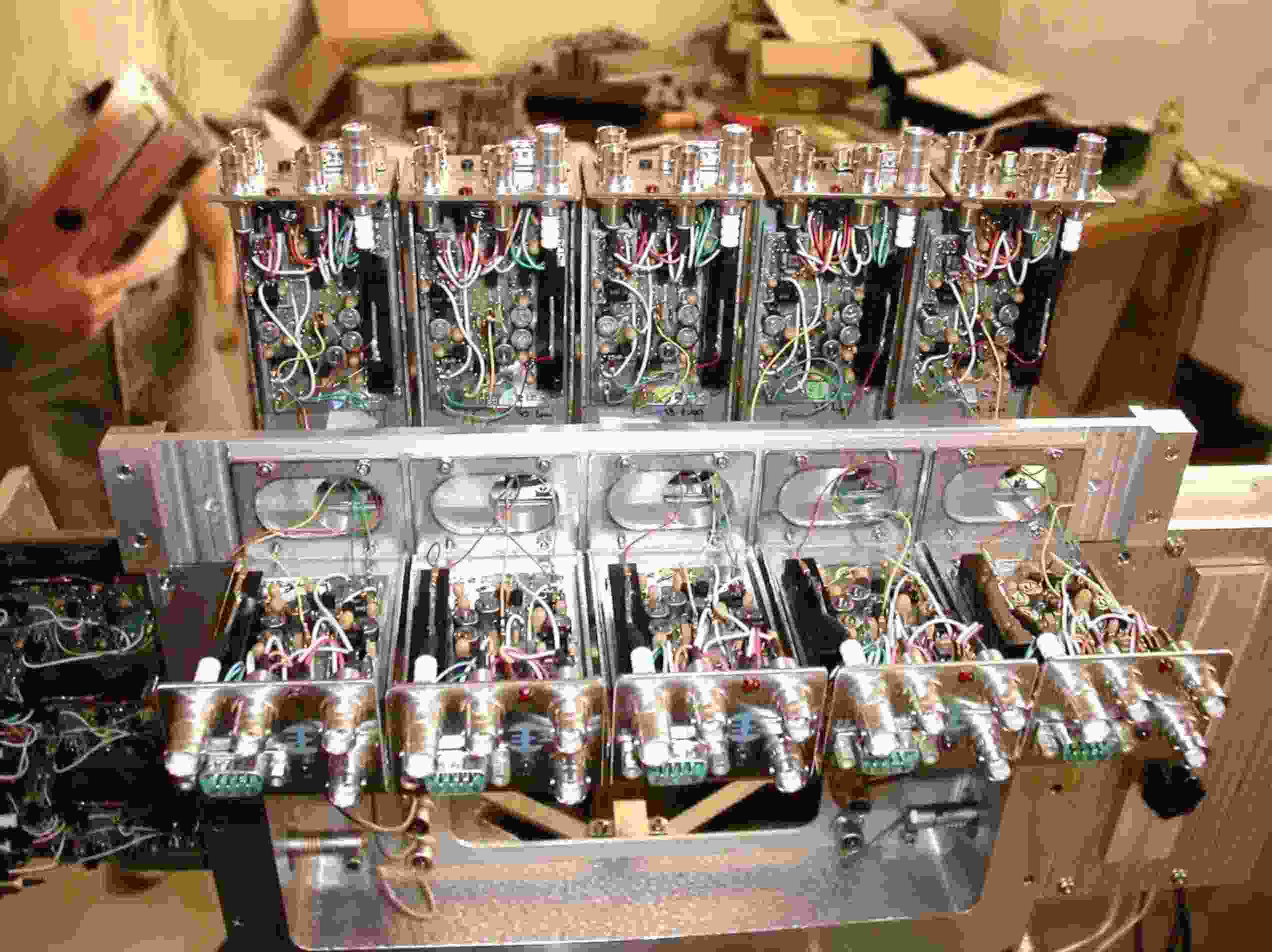

	The PIN diode Pre-Amp Assembly (partial). High Resolution		A more detailed view of a PIN diode Preamplifier. High Resolution		A Bare view of Great. High Resolution

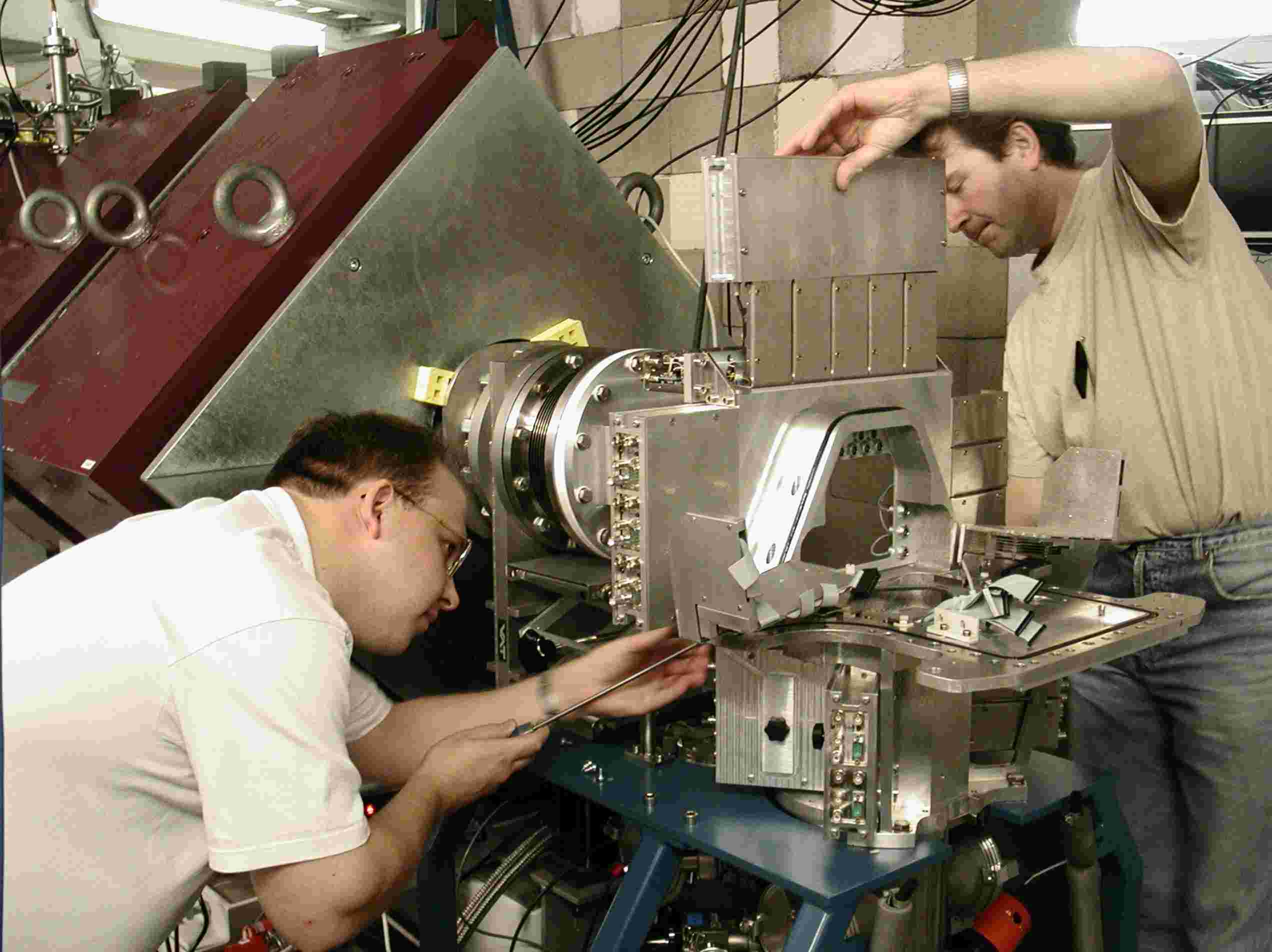

	The two Daves and PE taking a well deserved break. High Resolution		DEA and DAS mounting the Pre-Amp boxes. High Resolution		The Manchester Gas counter assembly. High Resolution
	The cables for the DSSD signals. High Resolution		A top down view of the GREAT chamber. High Resolution
